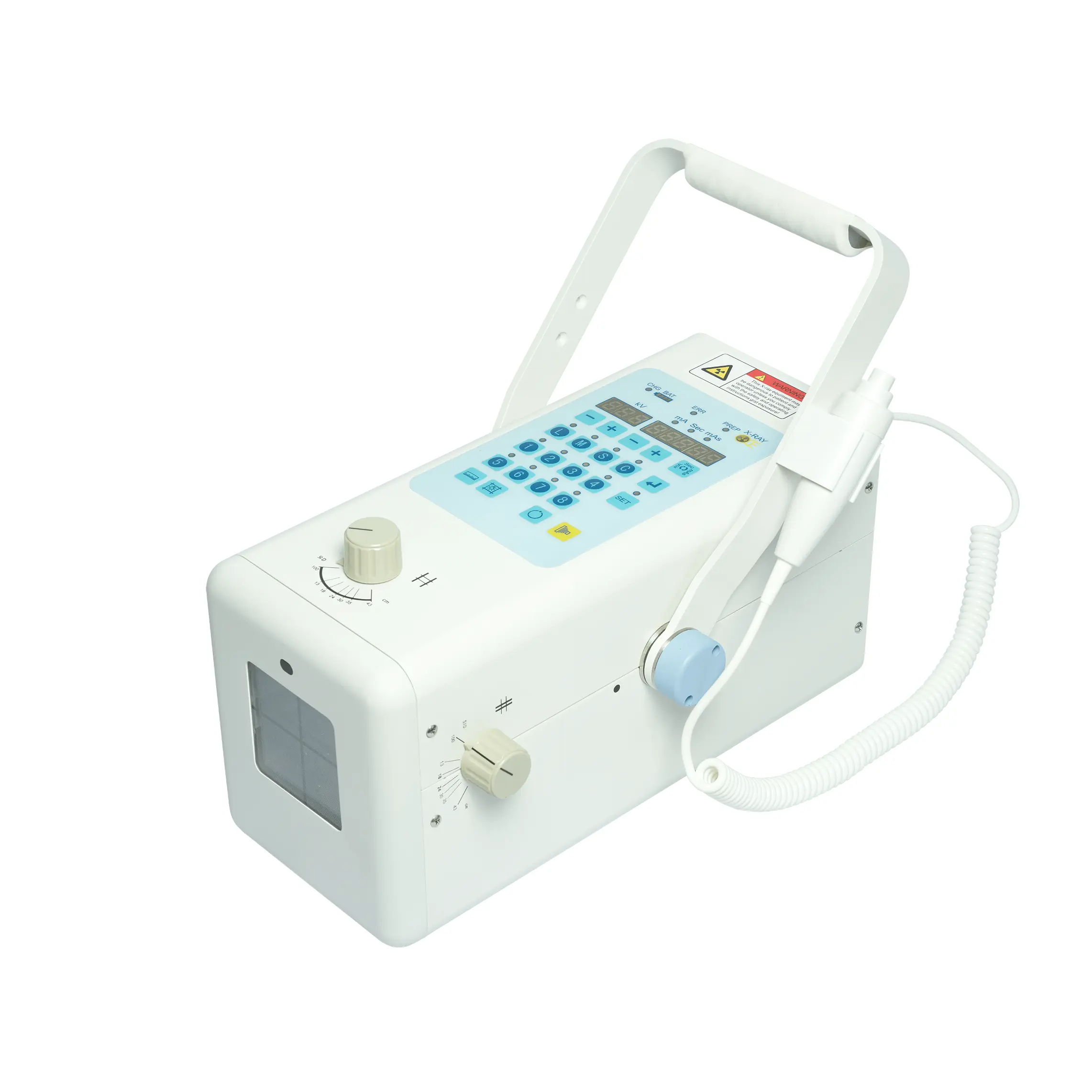

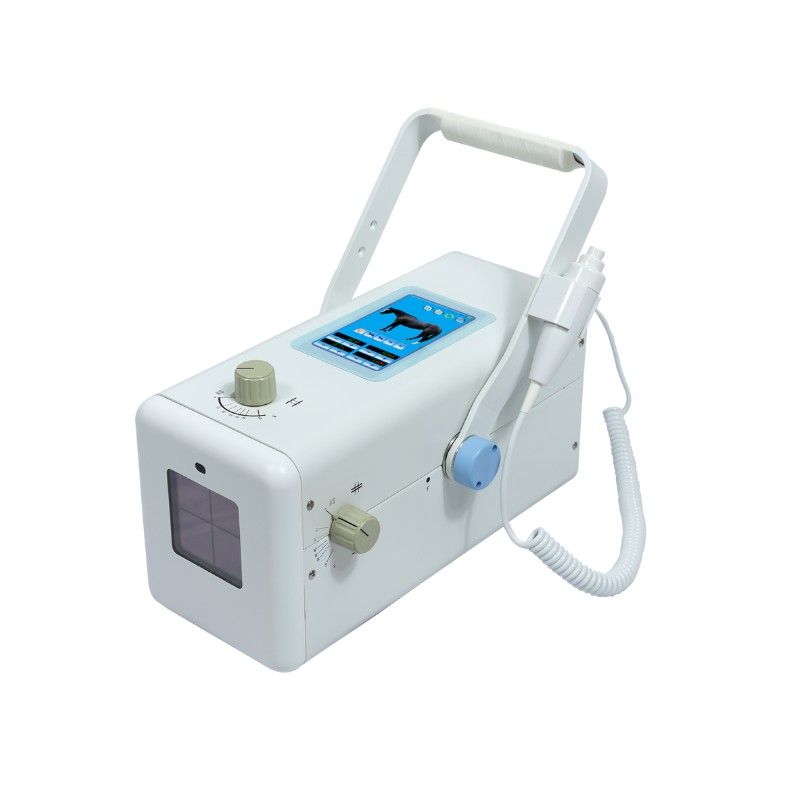

The XQ18 series portable X-ray machine can be powered by a rechargeable battery. The built-in beam limiter is a portable inspection device that can be used in military, disaster relief, medical emergency, pet hospitals and other fields. It adopts ultra-high frequency inverter technology, is compact, has stable performance, and can obtain good image information at low radiation doses.
Product features of 1.8kw Mobile DR
Portability and lightweight design
Using lightweight materials, the whole machine weighs only 10kg, which is easy to carry and move, suitable for use in various scenarios.
Equipped with trolley case and aviation box to protect the equipment, facilitate transportation, and improve the convenience of use.
High-performance output parameters
The maximum output power is 1.8kW, which meets various inspection needs, with clear imaging and accurate diagnosis.
The output voltage is adjusted in the range of 40kV~90kV, with an adjustment step of 1kV and a current range of 2~40mA, which is suitable for different detection objects and has a wide range of applications.
Intelligent display and operation

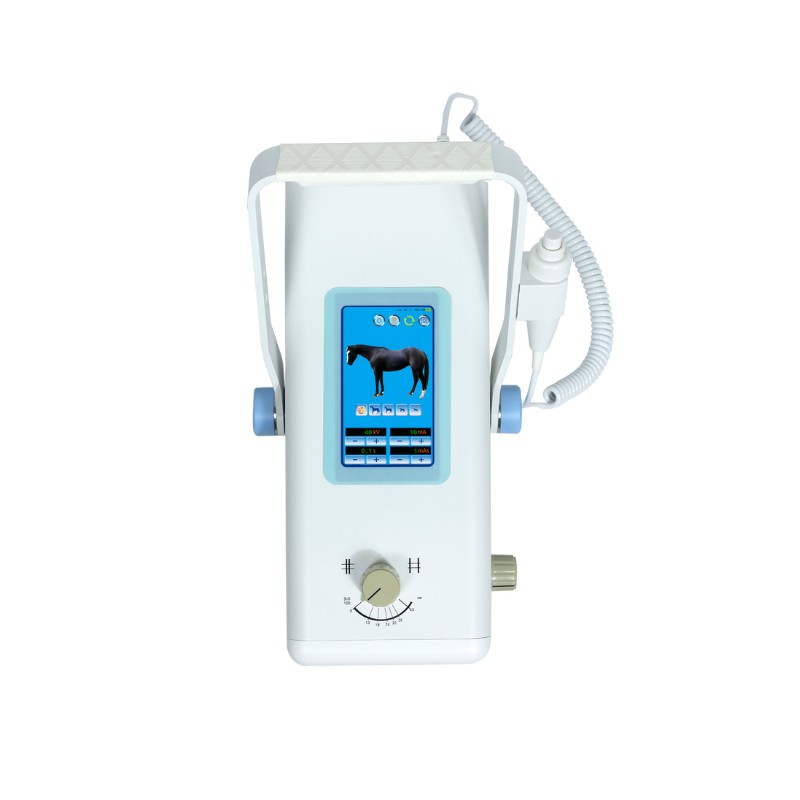

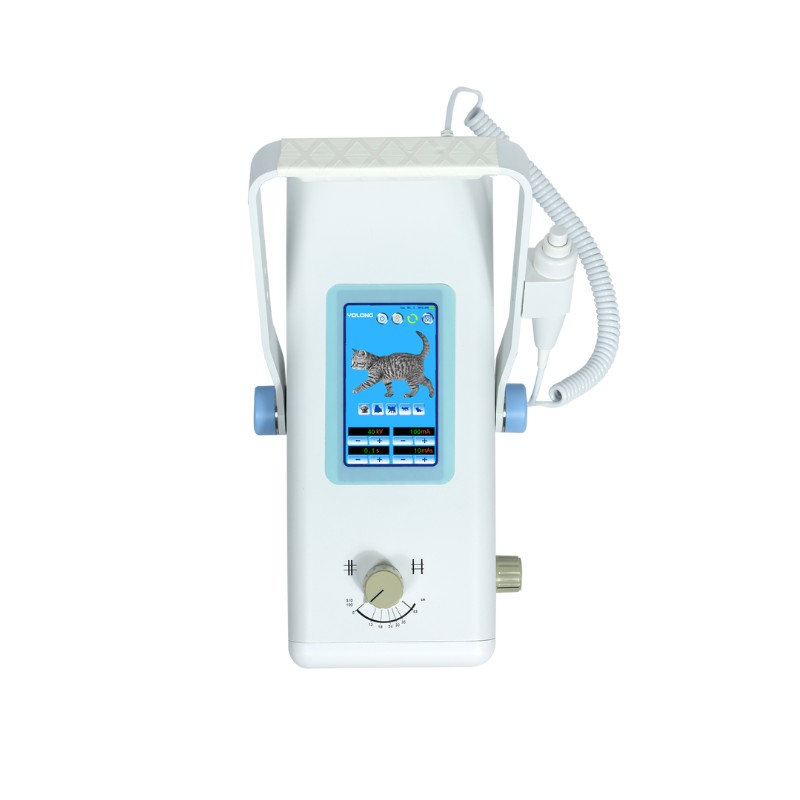

Optional digital tube display (D type) or LCD touch screen (T type), the operation interface is simple and intuitive.
Digital tube display touch switch panel, quick response; touch screen intelligent interaction, convenient parameter adjustment.
Core parameters and technical advantages
Temperature and humidity range
The operating temperature range is +5℃～+40℃, humidity is 20%～75%, adapting to various climatic conditions.
Whether in cold areas or humid environments, the equipment can operate stably.
Air pressure adaptation range
The air pressure adaptation range is 700hPa～1060hPa, which can cope with different altitudes.
From plains to plateaus, the performance of the equipment is not affected, ensuring the accuracy of detection.
Power adaptability
32VDC±2V/8A input, standard 3200mAh lithium-ion battery, strong endurance.
Standard support 100-240V wide voltage inpu
Standard Configuration
Standard：
XQ18RP(D) ultra-high frequency X-ray machine (1 unit) (default color: white)
YLBAT-01 rechargeable lithium-ion battery (1 unit)
3280 power adapter (1 unit) (100~240 wide voltage input)
Power cord (1 unit) (default national standard power cord)
Hand brake (1 unit)
Remote control (1 unit)
Communication line (1 unit)
Instruction manual (electronic or paper version)
Standard packaging box: carton
Transport packaging box: carton
Optional：
accessories 3280 power adapter
National standard power cord
American standard power cord
European standard power cord
YLBAT-01 rechargeable lithium-ion battery
YLCHG-01 charging station
Hand brake
Remote control
Communication line

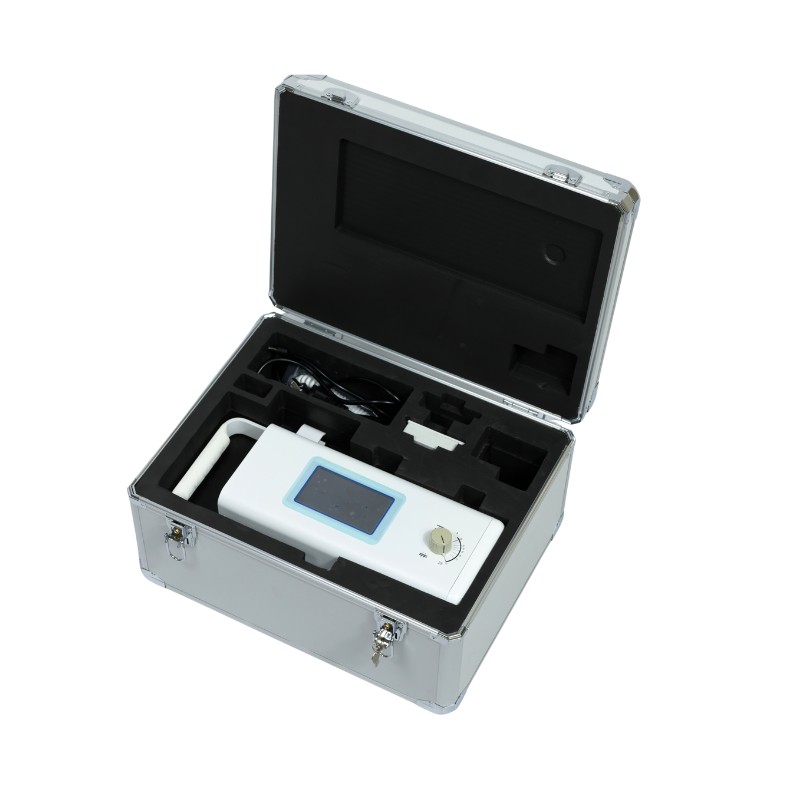

Aluminum alloy storage box

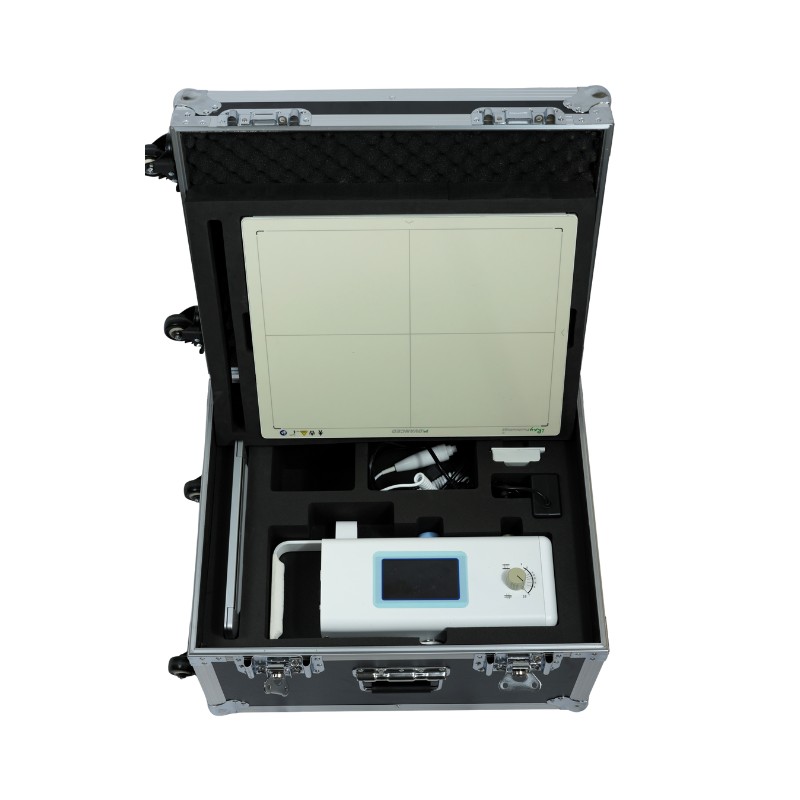

Airline storage box
Optional transport packaging box：
Wooden box
