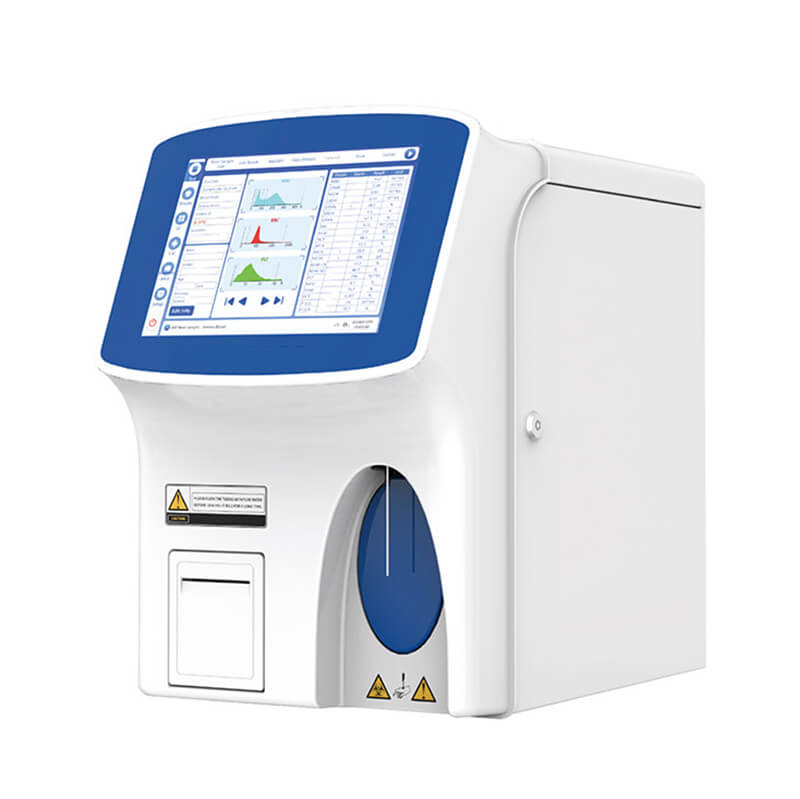

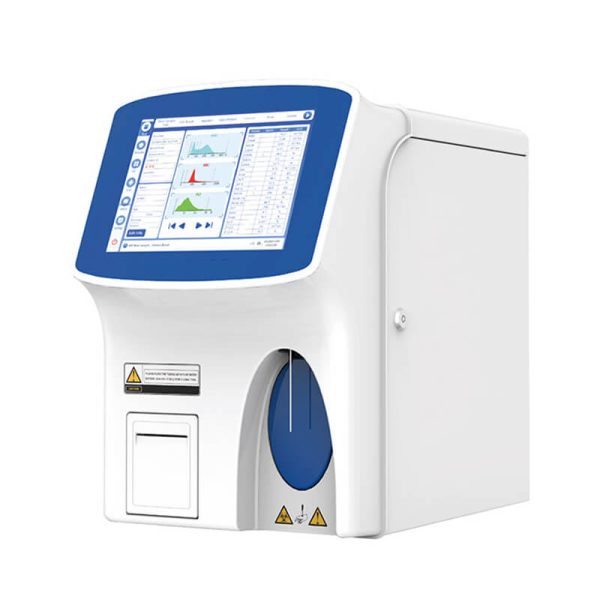

3-Part Auto Hematology Analyzer
Features:
1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen
2. Fewer samples are required for testing: venous blood: 10ul, capillary: 10ul, prediluted: 20ul
3. 60 samples/hour.
4. 21 parameters + 3 histograms
5. lt can be turned on continuously for 24 hours
6. Automatically clean the sampler, counting pool and pipeline after starting up
7. Built-in thermal printer, external printer can be connected
8. Electrical impedance method, cyanide-free detection of HGB
9. Fully intelligent blockage removal and alarm function
10. Both automatic calibration and manual calibration are available
11. Counting Mode: Venous, capillary, prediluted
12. Support LIS system
Parameter
| Throughput： | 60 samples/hour |
| Principle： | Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB |
| Channels： | 2 |
| Parameters： | 21 parameters (including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC) |
| Histograms： | 3 histograms (including WBC, RBC, PLT histograms) |
| Sample Volume： | Venous blood: 10µl, Capillary: 10µl, Prediluted: 20µl |
| Calibration： | Manual, auto calibration |
| Counting Modes： | Venous, capillary, prediluted |
| Printing Model： | Auto print, manual print |
| LIS： | Support Bi-directional LIS |
| Language： | Chinese, English, Spanish, French, Russian, Ukrainian |
| Reagent： | Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml |
| Data Input： | 9.7-inch touch screen, mouse, keyboard (optional) |
| Output： | Internal printer, support external printer |
| Printer paper： | 57*30mm |
| Interface： | 4 USB ports, network port, RS232 serial port. |
| Storage： | 100,000 results with histogram |
| Unclog： | High voltage burn, reverse high-pressure flush |
| Work Temperature： | 10~40℃ |
| Power Supply： | 100~240 AC, 50/60Hz, 150VA |
| Relative Humidity： | ≤80% |
| Atmospheric Pressure： | 86.0kPa~106.0kPa |
