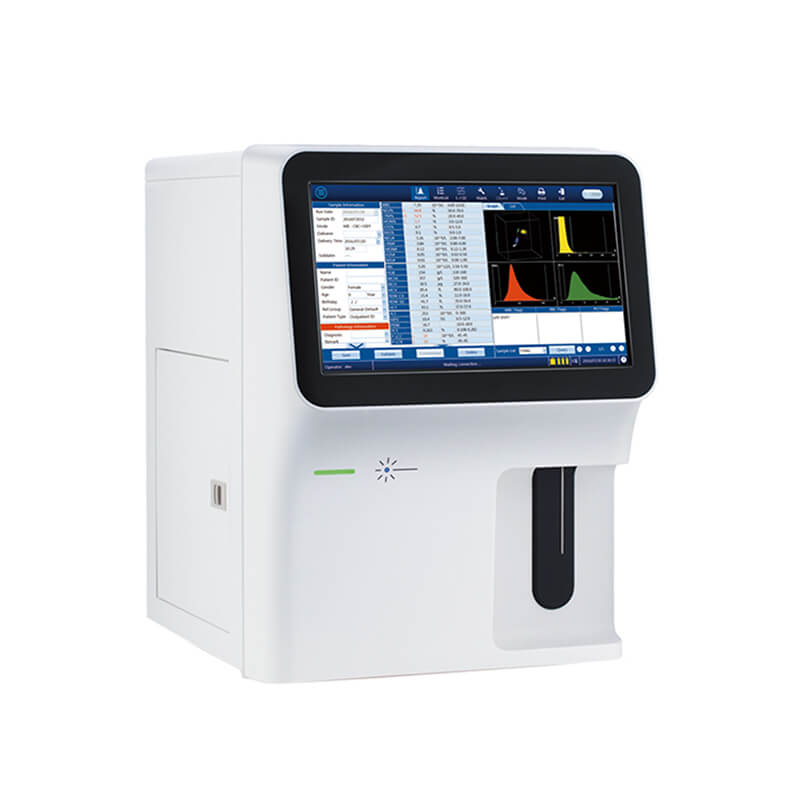

5-Part Auto Hematology Analyzer
UZZ-6310 5-Part Auto Hematology Analyzer is a fully automated diagnostic instrument that provides a detailed analysis of blood samples. This Auto Hematology Analyzer measures white blood cells (WBCs), red blood cells (RBCs), hemoglobin (HGB), platelets (PLT), and provides a 5-part differential count of WBCs.
This system offers fast, reliable, and accurate results, making it essential for clinical labs, hospitals, and point-of-care testing.
Features:
1.Throughput: 60T/H.
2.14 inch touch screen.
3.Tri-angle laser scatter + flow cytometry method+ impedance method for counting
4. 3D holographic scattergram displays the accurate5 part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, patient information)
Parameter
1.Throughput : 60 Tests/hour
2.Assay ltems: 5 parts, 29 parameters, 3 histograms, 3D scattergram
3.Principle: Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide free reagent for HGB test
4.Test Mode: CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted
5.Parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#
4 Research parameter: ALY%, ALY#, IG%, IG#
6.Performance:
| Item | Linearity range | Carry Over | CV |
| WBC | 0~300*109L | ≤0.5% | ≤2.0% |
| RBC | 0~8.00*1012/L | ≤0.5% | ≤1.5% |
| HGB | 0~250g/L | ≤0.5% | ≤1.5% |
| PLT | 0~3000*109/L | ≤4.0% | ≤1.0% |
7.Sample Volume： CBC+DIFF mode: ≤20µl CBC mode: ≤10µl
8.Storage： 100,000 results including histogram, scattergram and patient information
9.Interface： 4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader
10.Power Supply： AC220V±10% 50/60Hz; 110V±10% 60Hz; 400VA
11. Package Size(W*D*H)： 575*490*690mm
12.Gross Weight： 46kg
13.Reagent Package Size： 330*330*330mm, 400*290*240mm, 400*290*240mm
14.Reagent Gross Weight： 22kg, 2kg, 1kg
