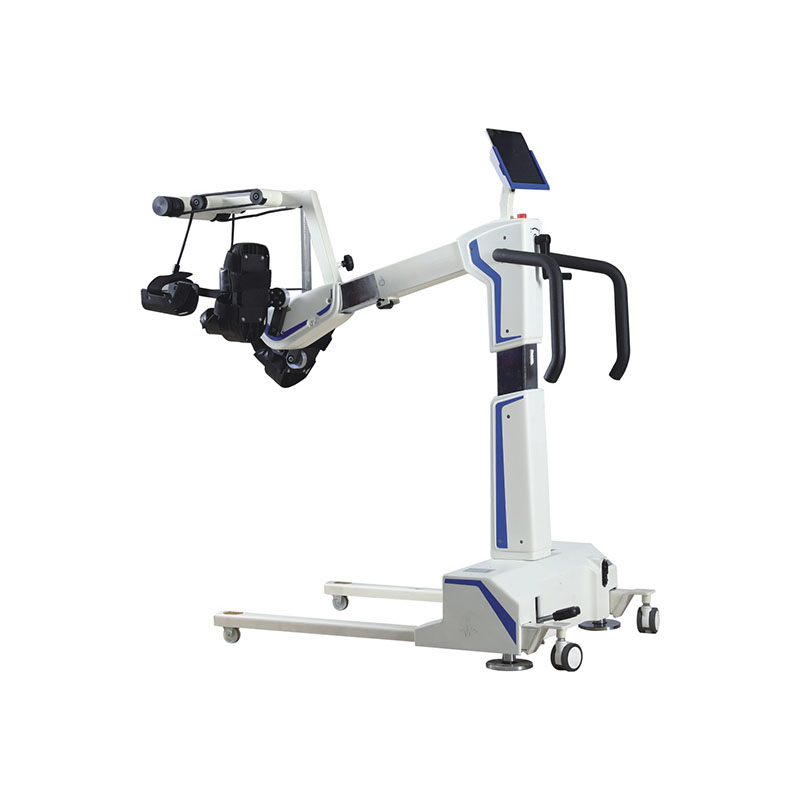

Lower Limb Besides The Bed AP007

Technical Parameter

1. Touch operation of a tablet computer ≥10 inches is convenient for patients with weak muscle strength
2. The screen inclination angle can be adjusted, so that patients with different heights can operate and view at the most comfortable angle
3. Windows operating system is convenient for software upgrades, and software running more smoothly. A chassis fixing device does not need to be fixed on the bed tail plate so that patients can carry out stable training on the pt bed and other bed surfaces
4. Cantilever adjustment stroke: 0-200mm
5. Cantilever adjustment mode: it can be easily adjusted by rotating the rocker, and it can still be used in case of power failure
6. Adjustment stroke of lifting column: 0-200mm
7. Lifting mode: electric lifting, height adjustment through software interface, easy and labor-saving, and more accurate adjustment
8. Leg bracket stroke adjustment: 0-110mm, which can be adjusted according to the patient’s calf length
9. Training time adjustment range: 1 ~ 60 min, step by step for 1min
10. Passive training speed adjustment range: 1 ~ 60 r/min, step for 1r/min
11. The motor power level is divided into three grades: low, medium and high, which can adapt to patients with different muscle tension levels or limb weights
12. Training resistance adjustment: 0 ~ 20, the difficulty increases step by step, the step is 1
13. Spasm level: 1-6 levels are adjustable, and the step is 1. The higher the level, the higher the spasm sensitivity, and the easier it is to trigger spasm protection
14. The training direction is adjustable, and the reversing modes include manual and automatic reversing
15. Working noise: ≤60dB(A)
