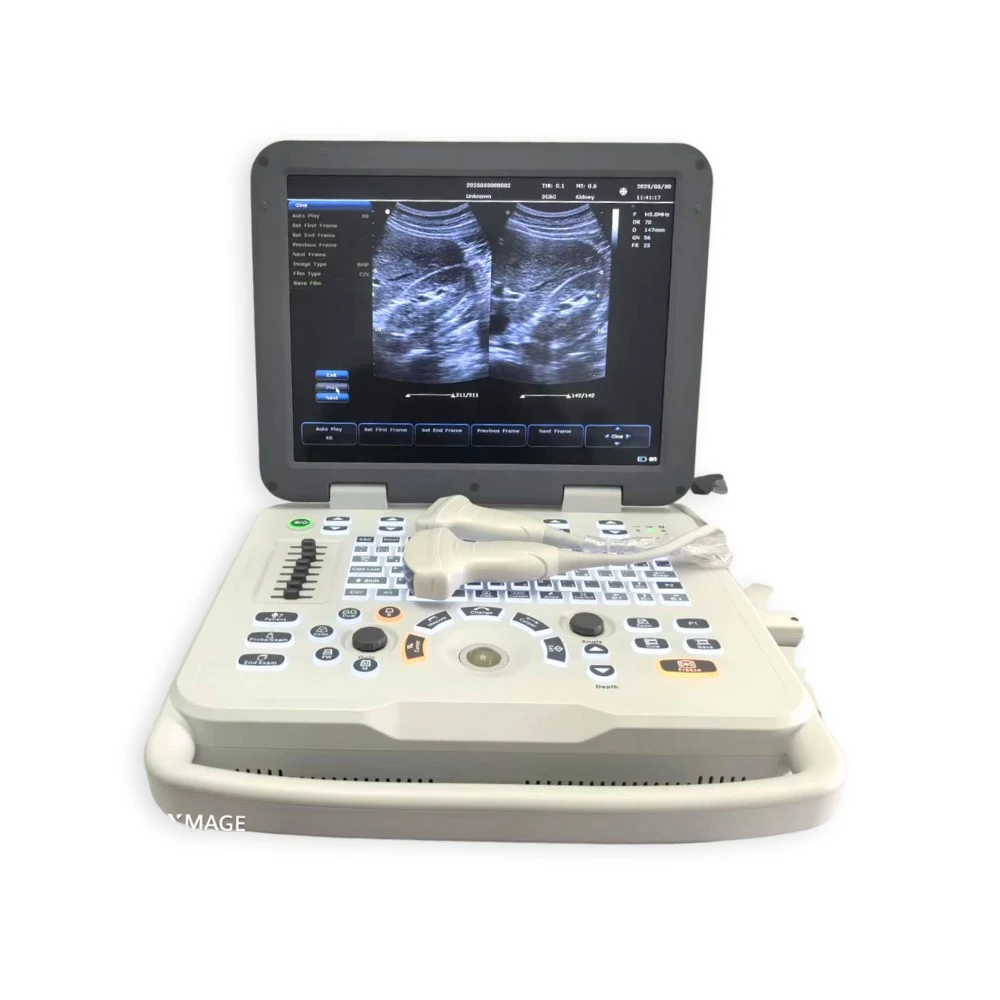

A brand-new ultrasound diagnostic platform with Innovations in areas of digital electronics achieve a new level of ultrasound diagnostic precision and higher diagnostic confidence. A revolutionary workflow control is provided with the user-centric architecture of the new software platform.
Basic parameters
Size and weight
Host size：370mm (width) * 350mm(depth) * 70mm(thickness)
weight: 5.5kg(with no probe)
Including package Size: 465mm(width) ×465mm(depth) × 230mm(thickness)
weight: 9.5kg(host + 2 probes + power cable + adapter + manual + carton + foam)2.3 Monitor
15-inch, high resolution, progressive scan, Wide Angle of view
Resolution:1024*768 pixels
Image display area is 640*480
★Adjustable angle of monitor：135°
Control Panel
User-oriented design
Backlight design: panel buttons
Multiple user define keys
TGC: 8 segment slider controls
Hard disk
Internal ≥128GB hard disk for patient database management
Allow storage of patient studies that include images，clips，reports and measurements
Transducer Ports
Probe ports: 2
Technical platform
★linux+ARM+FPGA, Low power and high stability system platform.
★Startup time：≦ 12 seconds, the fastest in the world。
★Upgrade the system from the bootloader，system can be upgraded forever。
★ECG is optional, one machine dual-use。
Optional specifications：
Standard configuration :
main unit (with a built-in hard disk)
3.5MHz mult-frequency convex probe
7.5MHz linear probeinternal Li-battery
Optional configuration :
6.5MHz transvaginal probe
USB report printer
video printer
biopsy guide
trolley
foot switch
Powerful function & Confiquration
High grade display:
High resolution 1 5’LED
80 elements probe
Support infinite amplification under real time scan(B、B+C、2B、4B)
Color blood fiow, PW, PDl
Human function ergonomical keyboard design:
Optimized keyboard
Back light keyboard
Data store & software:
Powerful measuring & calculating software for clinical demands
DICOM3.0
Intemal working station : support hard disk, search & browse patients data
Support store JPG,BMP,FRM format and ClN,AVl movie format
System language:
Standard English, customized for other languages·Note on full screen is available
