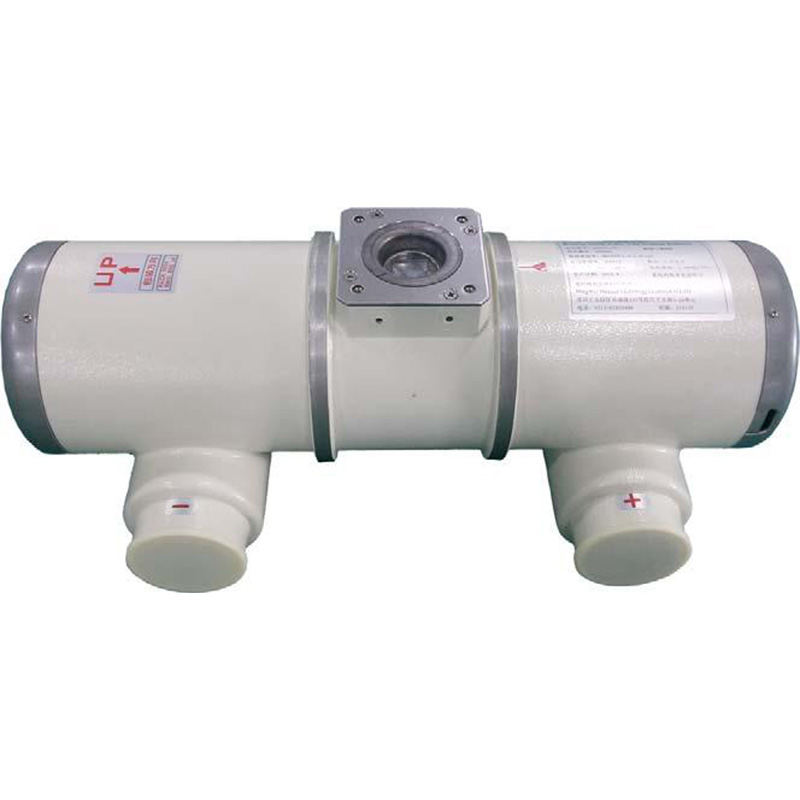

Rotating Anode X‐Ray Tube Assembly MWHX7010A

Technical Parameter

1. X-ray tube assembly for all routine diagnostic examinations with conventional or digital radiographic and fluoroscopic workstations
2. The insert features: 16° Rhenium-Tungsten molybdenum target (RTM)
3. Focal spots: Small 1.0, Large: 2.0
4. Maximum tube voltage: 125 kV
5. Accommodated with IEC60526 type high-voltage cable receptacles
6. High voltage generator should accord with IEC60601-2-7
7. IEC Classification (IEC 60601-1:2005): Class I ME EQUIPMENT

   Property	Specification		Standard
   Nominal input power(s) of the anode	F1 21kW(50/60Hz)	F2 42.5kW(50/60Hz)	IEC 60613
   Anode heat storage capacity	100 kJ (140kHU)	100 kJ (140kHU)	IEC 60613
   Maximum cooling capacity of the anode	475W	475W
   Heat storage capacity	900kJ	900kJ
   Max. continuous heat dissipation without Air-circular	180W	180W
   Anode material Anode top coating material	Rhenium-Tungsten-TZM(RTM) Rhenium-Tungsten-(RT)	Rhenium-Tungsten-TZM(RTM) Rhenium-Tungsten-(RT)
   Target angle (Ref: reference axis)	16°	16°	IEC 60788
   X-ray tube assembly inherent filtration	1.5 mm Al / 75kV	1.5 mm Al / 75kV	IEC 60601-1-3
   Focal spot nominal value(s)	F1(small focus) 1.0	F2(large focus) 2.0	IEC 60336
   X-ray tube nominal voltage Radiographic Fluoroscopic	125kV 100kV	125kV 100kV	IEC 60613
   Data on cathode heating Max.current Max voltage	≈/AC,< 20 kHz	≈/AC,< 20 kHz
   	F1	F2
   Max.current Max voltage	5.1A ≈5.8~7.8V	5.1A ≈7.7~10.4V
   Leakage radiation at 150 kV / 3mA in 1m distance	≤1.0mGy/h	≤1.0mGy/h	IEC60601-1-3
   Maximum radiation field	573x573mm at SID 1m	573x573mm at SID 1m
   X-ray tube assembly weight	Approx. 18 kg	Approx. 18 kg
