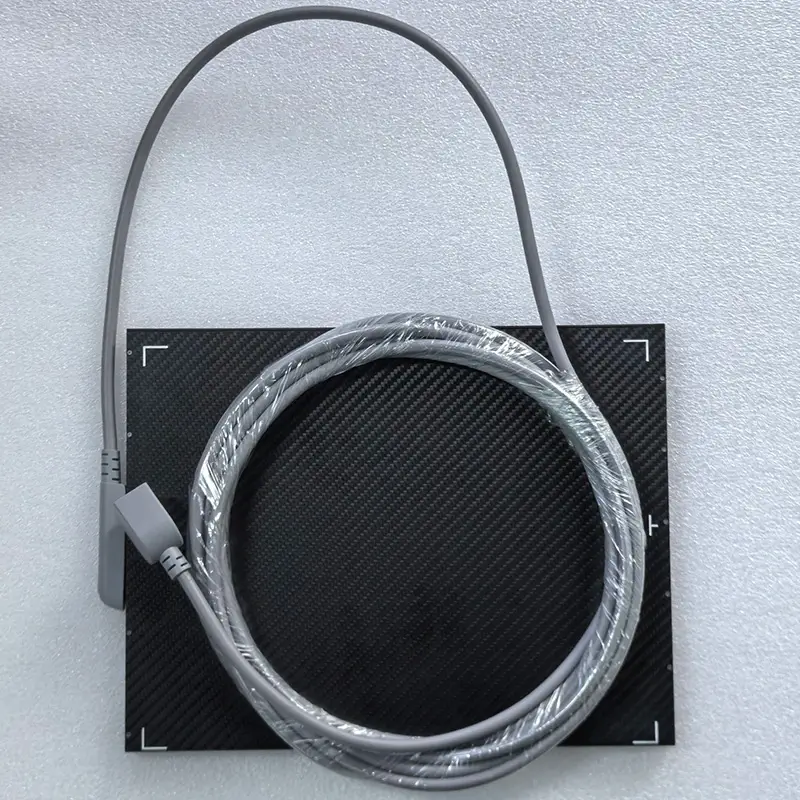

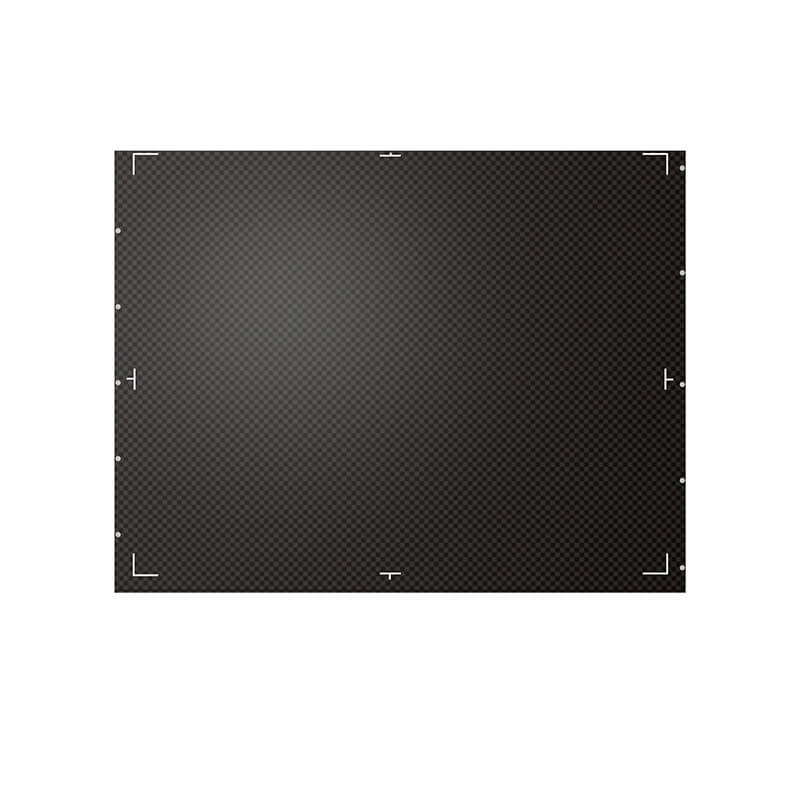

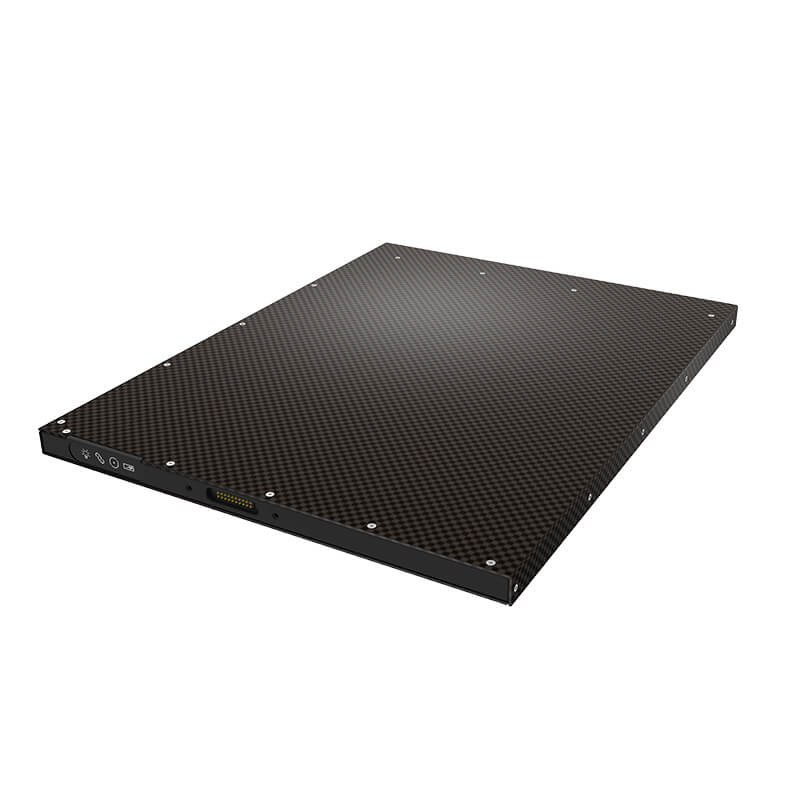

X-Ray Detector 3024SC-HG

X-Ray Detector 3024SC-HG is a light weight detector based on amorphous silicon(a-Si), which is suitable for mammography DR.

Sensor
Receptor Type:  a-Si

Scintillator:        CsI:TI

Active Area:        239 x 304 mm

Resolution:         2816 x 3584

Pixel Pitch:         85 μm

Power Supply & Battery

Adapter In:        AC 100-240V,50-60Hz

Adapter Out:     DC 24V,2.7A

Power Dissipation: <20 W

Image Quality
Limiting Resolution：    5.8 LP/mm

Energy Range：               20-160 KV

Dynamic Range：            ≥76 dB

Sensitivity：                     ≥0.36 LSB/nGy

Lag：                                 <1% 1st frame

DQE：                               38% @(1 LP/mm)

21% @(2 LP/mm)

MTF ：                              75% @(1 LP/mm)

48% @(2 LP/mm)

28% @(3 LP/mm)
